A Micrometer is the name of a device that incorporates a calibrated screw used to accurately measure the components used in machining and mechanical engineering in addition to the majority of mechanical trades. A micrometer is able to make precise linear measurements of the likes of diameters, lengths and thicknesses of solid bodies, and usually comes as a C-shaped frame featuring a moveable jaw that is operated by an integral screw.
Micrometers come in a wide array of different sizes and types that makes them perfectly suited for use in many diverse settings and applications. They are automatic and manual, analogue with digital transformation, and display either metric units or imperial units. Micrometers are one of the most accurate kinds of measuring devices, with the majority of micrometers able to measure up to 0.001 millimetres (or 0.0001 inches).

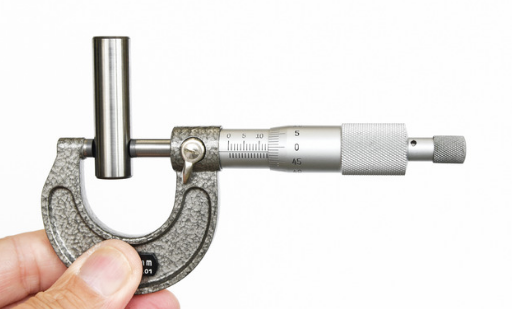

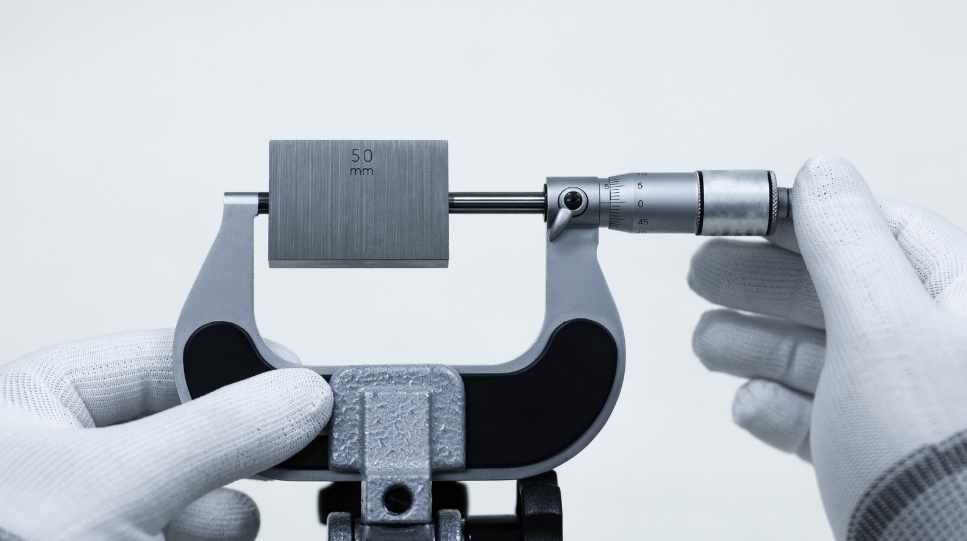

What features does a micrometer have?
- A frame
- An anvil
- A barrel (or sleeves)
- A lock nut (or a thimble lock)
- A screw
- A spindle
- A thimble
- A ratchet stop

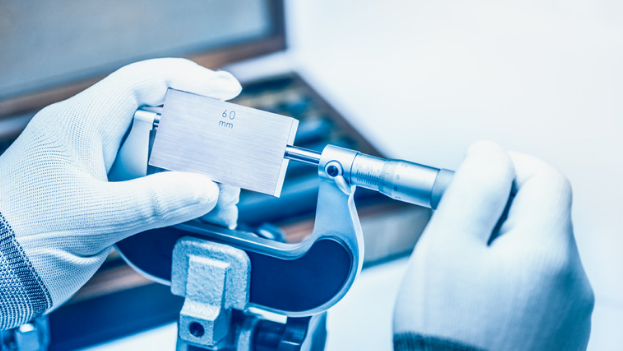

The C-shaped frame holds together the barrel and the anvil. It is thick and heavy, making it unlikely that it will buckle under thermal and mechanical stresses. The anvil rests on one particular side of the frame, with the spindle moving toward it to hold the object in place and record the measurement.
The barrel, or sleeves, is the name of the stationary cylindrical component held on the opposite side of the anvil by the frame.
The thimble lock, or lock nut as it also sometimes called, is the name of the lever that tightens the movement of the spindle in order to ensure it will not move while the measurement is being taken. The instrument should also not be exposed to the sun for long periods.
A screw is the primary component in the functioning of a micrometer. A fine pitch screw mechanism is how a micrometer is able to achieve such accurate measurements. A spring-loaded twisting handle is also an interesting feature as the mechanical advantage that a screw offers could normally be used to make the micrometer squeeze material and result in an erroneous measurement, but the attaching of a handle that is capable of ratcheting at a particular torque prevents the micrometer from continuing to advance after it encounters sufficient resistance.
The spindle is the name of the cylindrical component that moves when the thimble is rotated, touching the object that needs measuring and holding it tight. The thimble is turned by the thumbs and is the component that is responsible for the movement of the spindle.
The ratchet stop appears at the end of the mechanism and has the responsibility of making sure that the object receives allowable pressure only. Micrometers are used by the majority of the manufacturing industry that uses business intelligence because of their ability to take measurements accurately and safely.
